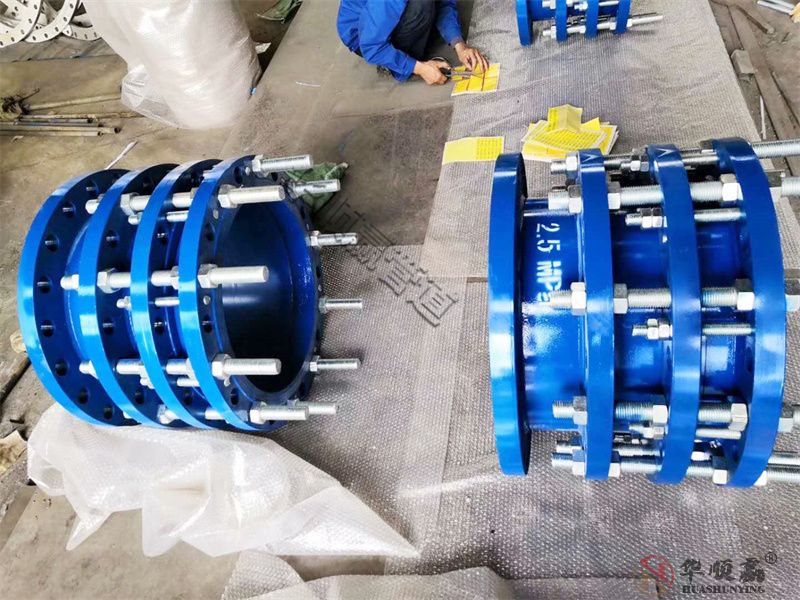

VSSJAFC (CC2F) Detachable Double Flange dismantling joint

VSSJAFC type detachable double flange force transmission joint is composed of loose sleeve expansion joint, short pipe flange, force transmission screw and other components, which can transmit the pressure thrust (blind plate force) of the connected parts and compensate for pipeline errors, and It has a certain amount of adjustment, which is convenient for adjustment in the actual construction environment.

Data Sheet:

Brief description of the installation of the detachable double flange power transmission joint:

The detachable double-flange power transmission joint is suitable for pipelines connected with flanges on both sides. When installing, adjust the installation length of the two ends of the product and the flanges, and tighten the gland bolts diagonally and evenly to make them a whole. And there is a certain amount of displacement, which is convenient for installation and maintenance, and can be adjusted according to the size of the site. When working, the axial thrust can be transmitted to the positive pipe.

Conditions that need to be paid attention to when choosing a detachable double flange power transmission joint:

The work of the detachable double-flange power transmission joint is to transmit force to the pipeline and have a certain amount of displacement within its space, so we should pay attention when we purchase the detachable double-flange power transmission joint All aspects of the requirements, let the technical staff of Huashunying tell you what we need to pay attention to when choosing a detachable double flange power transmission joint.

First of all, before we choose the detachable double flange power transmission joint, we must have a certain understanding of the pipe diameter and other aspects, and also have a detailed understanding of the size of the accessories connected to it; then the detachable double flange The pressure understanding of flanged power transmission joints, we all know that if we do not have a detailed understanding of its pressure, it will easily cause the detachable double flanged power transmission joints to bear the unacceptable pressure and cause damage to the pipeline, so we The pressure P of the selected detachable double-flange power transmission joint is less than or equal to Pd; we must also have a certain understanding of the work that the detachable double-flange power transmission joint can withstand, otherwise the temperature is too low or too high. Cause the strike of the detachable double flange power transmission joint, which will cause losses to us.
